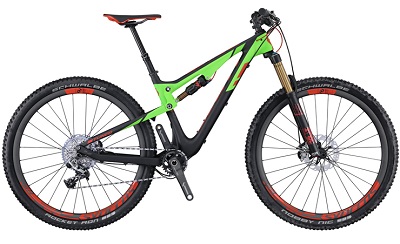

SPECIFICATION :

Frame
Genius Carbon / IMP / HMX /
BB92 / Carbon swingarm with 180PM
U-Mono Link / Tapered Headtube
IDS SL dropouts for 142x12mm
BB height adj.
Travel
Front 140mm
Rear 130 - 90 - Climb / Shock 190X50
Fork
FOX 34 Float Factory Air / Kashima
FIT4 3-Modes with low speed adj.
15mm QR axle / tapered steerer
Lockout / reb. Adj.
Rear Shock
FOX Nude / SCOTT custom w. travel / geo adj
DPS 3 modes: Lockout - Traction Control -
Descend / Kashima / EVOL / reb. Adj.
Remote System
SCOTT TwinLoc Downside Remote
3 modes front and rear / integ. Grip clamp
Headset
Syncros FL1.5 / Tapered 1.5" - 1 1/8"
semi integ. OD 50/61mm / ID 44/55mm
Rear Derailleur
SRAM XX1
11 Speed
Front Derailleur
SCOTT Chainguide / DM
Shifters
SRAM XX1 Trigger right only
multi adj. / with Carbon cap
Brakes
Shimano XTR M9020 Disc / Pads w/Fin
180/F and 180/Rmm SM-RT99 CL Icetech Rotor
Crankset
SRAM XX1 GXP PF / DM
Carbon crankarm / QF 168
DM 30T
BB-Set
SRAM GXP PF integated / shell 41x89.5mm
Handlebar
Syncros FL1.0 Carbon T-Bar
T shape flat / 9° / 740mm
Syncros Pro lock-on grips
Handlebar Stem
Syncros TR1.0 Carbon
7050 Carbon wrapped / oversize 31.8mm
1 1/8" / -6° angle
Seatpost
Rock Shox Reverb Stealth 125
inside hydraulic remote system / 31.6mm
Seat
Syncros XM1.0 / Carbon rails
Hub (Front)
Syncros TR1.0 CL / 15mm
made by DT Swiss
Hub (Rear)
Syncros TR1.0 CL / 142x12mm / RWS axle
36T Rachet System /XD / made by DT Swiss
Chain
SRAM PCXX1
Cassette
SRAM XX1 /XG1199
10-42 T
Spokes
DT Swiss Aero Comp
Rims
Syncros TR1.0 Carbon
28H / Carbon rim / Tubless ready
Tires
Schwalbe
Front: Nobby Nic EVO / 2.25
Rear: Rocket Ron EVO / 2.25
PaceStar compound / Tubeless Easy
Weight
11.4kg/25.13lbs
